Product Name Copper Braids Connector
MaterialPure T2 copper
Product Description
Adopt bare copper wire or tinned braided copper wire (twisted wire), which is formed by cold pressing. The contact surface can be tinned or silver plated according to customers’ requirements.
Single wire diameter
■0.20mm: Standard products.
■0. 10mm: Can be processed according to customers’ requirements.
Technical Parameters
■Width, length, cross-sectional area and drilling are not included in the table below and can be processed according to customer requirements.
■The allowable current capacity is for reference. This value is related to the installation and use conditions of the soft conductor.

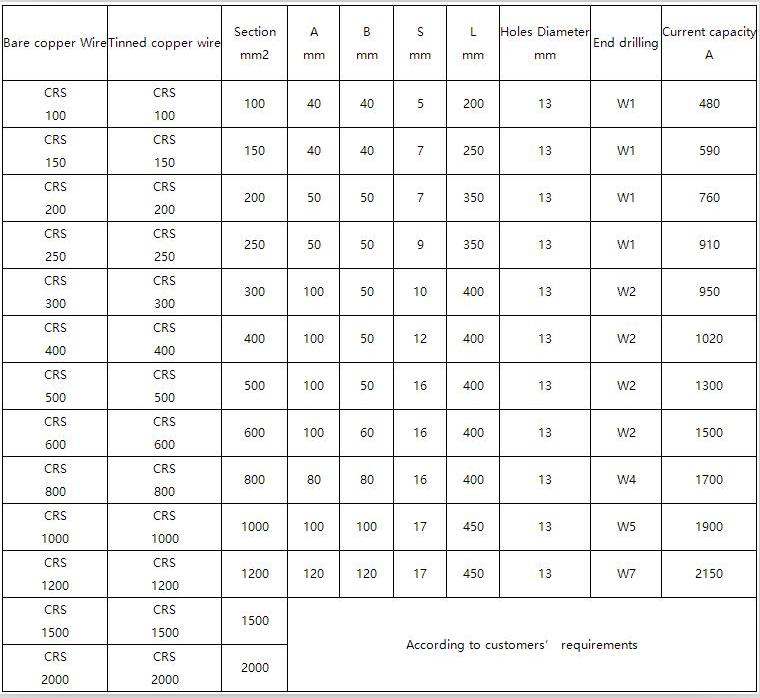

Technical parameter table of flexible copper barid connector
General drawing
